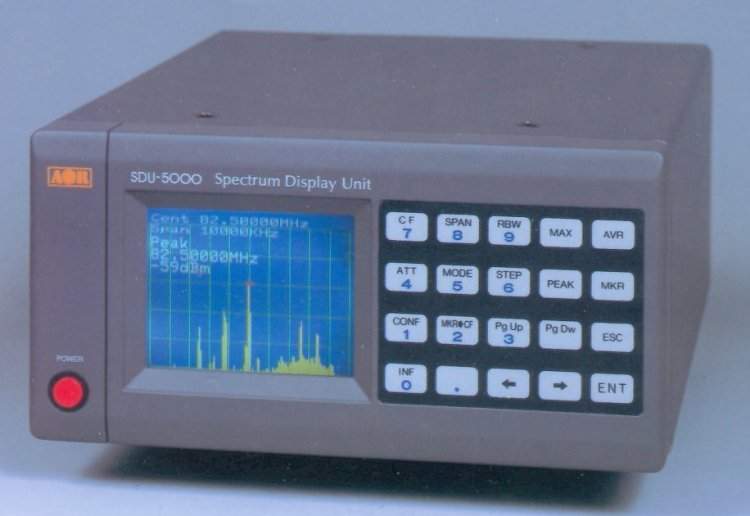

AOR SDU-5000
| Type: |
Spectrum Display Unit |
| Input Frequency: |
10 MHZ |
| Sweep Width: |
0 to 10 MHZ(1kHz steps) |
| Frequency accuracy: |
± 600Hz |
| Resolution: |
5 or 30 kHz |
| Reference level: |
-10 or -40dBm |
| Maximum input level: |
-10dBm |
| Plot Mode: |
Outline or Paint |
| Display mode: |
Upper / Lower |
| Dimensions: |
95mm(H) x 190mm(W) x 255mm(D) approx |
| Weight: |
1950g approx |
| Other: |
|
| Related Documents: |
User Manual (414 KB)
Hawk 5000 Software Manual (224 KB) |
 |
